R&D - Water Ripple, Postprocessing and HTML like world

This is a very quick example of how to use postprocessing on the HTML like world 3D objects. As a follow up to the first article here

The effect is a water like trail/ripple onto a screen. And as we now have HTML like structure to our 3D objects in terms of widths, heights and positions, we can now render this to a render target and use postprocessing on it.

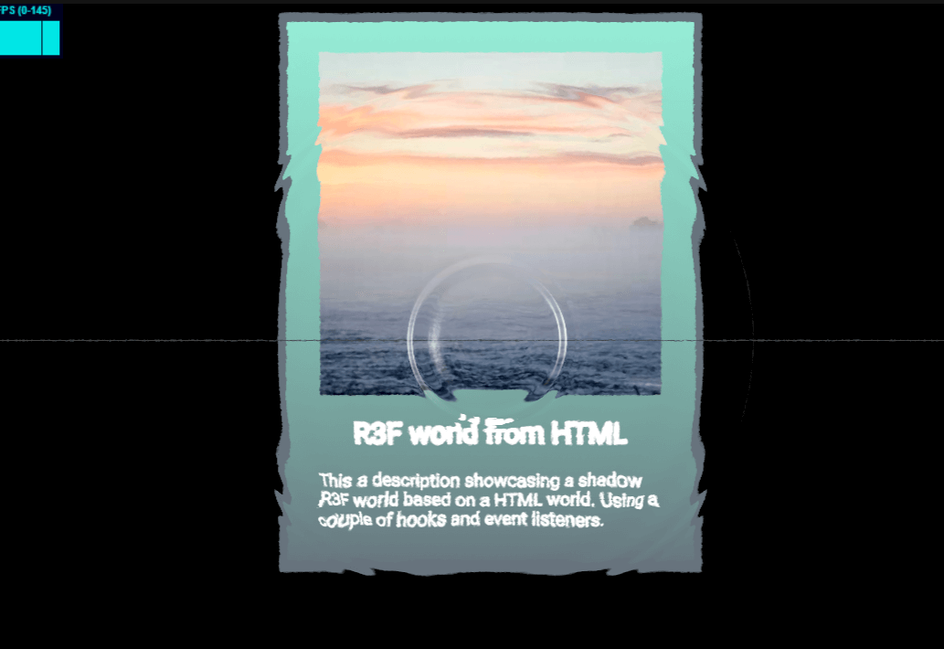

Below is a quick video of it:

As you can see it looks pretty good, but the down side is when you resize or rotate you will get quite bad artefacts. Yet to be ironed out. But you have an example of this to work off and change effects etc.

Why Replicate layout of HTML in THREE?

The aim is to mimic the HTML in a THREE setting using calculated positions, widths and heights. This way when postprocessing renders the canvas to the screen we can apply affects to effectively the HTML via the display of THREE components.

If we didnt do this we are limitted drastically as to how we apply postprocessing effects to the rendered threejs scene.

Side note on details

As there is a live example of this, Im only going to briefly describe the process rather than go into detail and copy and paste the code snippets.

Effect Composer Setup

The effect composer is built to accomodate a feedback loop between renders, i.e. the render result is fed into the start of the effect/renderloop. And then the maths in the shaders propergates the effect.

I am not the creator of the ripple effect so please give credit where its due “A simple water effect by Tom@2016 (shadertoy) - based on PolyCube version: http://polycu.be/edit/?h=W2L7zN”

I have modified it to work with the postprocessing library and created a custom effect.

So how do we do the feedback loop, see below for a code dump:

1import { useRef, forwardRef, useState, useMemo, useEffect } from "react";
2import { useFrame, useThree, createPortal } from "@react-three/fiber";
3import { OrthographicCamera, useFBO, Stats } from "@react-three/drei";
4import { EffectComposer } from "@react-three/postprocessing";
5import * as THREE from "three";
6
7import { RippleEffect } from "./Ripple";
8import OffScreenScene from "./OffScreenScene";
9
10const cameraZ = 1;
11let lastMousePosition = new THREE.Vector2();
12const vec3 = new THREE.Vector3();
13const zoomCalcBox3 = new THREE.Box3();
14const mouseCenter = new THREE.Vector3(0.5, 0.5, 1.1);
15const res = new THREE.Vector2();
16
17function calculateOrthographicZoom(camera, object, distance) {
18  const boundingBox = zoomCalcBox3.setFromObject(object);
19  const objectSize = boundingBox.getSize(vec3);
20
21  const screenWidth = camera.right - camera.left;
22  const screenHeight = camera.top - camera.bottom;
23
24  const zoomX = screenWidth / objectSize.x;
25  const zoomY = screenHeight / objectSize.y;
26
27  // Choose the larger of the two zoom values to ensure the object fills the screen
28  return Math.max(zoomX, zoomY);
29}
30
31function calculateDistanceToCamera(camera, object) {
32  const cameraPosition = vec3;
33  const objectPosition = vec3;
34
35  camera.getWorldPosition(cameraPosition);
36  object.getWorldPosition(objectPosition);
37
38  const distance = cameraPosition.distanceTo(objectPosition);
39
40  return distance;
41}
42
43export default forwardRef(function Plane({ ...props }, crocVectors) {
44  const { size, gl, set, scene } = useThree();
45  const offScreen = useRef();
46  const composerRef = useRef(null);
47  const rippleShaderPassRef = useRef(null);
48
49  // const planeRef = useRef()
50
51  const [orthoZoom, setOrthoZoom] = useState(1);
52
53  const offScreenFBOTexture = useFBO(size.width, size.height);
54  const onScreenFBOTexture = useFBO(size.width, size.height);
55
56  const [offScreenScene] = useState(() => new THREE.Scene());
57  const offScreenCameraRef = useRef(null);
58
59  let textureA = offScreenFBOTexture;
60  let textureB = onScreenFBOTexture;
61  res.x = size.width;
62  res.y = size.height;
63
64  useFrame((state) => {
65    const { gl, clock, pointer } = state;
66    gl.setRenderTarget(textureB);
67    gl.render(offScreenScene, offScreenCameraRef.current);
68
69    //Swap textureA and B
70    var t = textureA;
71    textureA = textureB;
72    textureB = t;
73
74    rippleShaderPassRef.current.uniforms.get("bufferTexture").value =
75      textureB.texture;
76    offScreen.current.material.uniforms.bufferTexture.value = textureA.texture;
77
78    if (rippleShaderPassRef.current) {
79      console.log({ test: Math.round(clock.elapsedTime) % 4 });
80      if (Math.round(clock.elapsedTime / 0.1) % 24.0 === 0) {
81        offScreen.current.material.uniforms.mouse.value.x = 0.5;
82        offScreen.current.material.uniforms.mouse.value.y = 0.5;
83        offScreen.current.material.uniforms.mouse.value.z = 1.01;
84        rippleShaderPassRef.current.uniforms.get("mouse").value.x = 0.5;
85        rippleShaderPassRef.current.uniforms.get("mouse").value.y = 0.5;
86        rippleShaderPassRef.current.uniforms.get("mouse").value.z = 1.01;
87      } else {
88        offScreen.current.material.uniforms.mouse.value.x = 0.5;
89        offScreen.current.material.uniforms.mouse.value.y = 0.5;
90        offScreen.current.material.uniforms.mouse.value.z = 0.0;
91        rippleShaderPassRef.current.uniforms.get("mouse").value.x = 0.5;
92        rippleShaderPassRef.current.uniforms.get("mouse").value.y = 0.5;
93        rippleShaderPassRef.current.uniforms.get("mouse").value.z = 1.01;
94        // rippleShaderPassRef.current.uniforms.get('mouse').value.x = 0.5
95        // rippleShaderPassRef.current.uniforms.get('mouse').value.y = 0.5
96        // rippleShaderPassRef.current.uniforms.get('mouse').value.z = 0.0
97      }
98    }
99
100    offScreen.current.material.uniforms.time.value = clock.elapsedTime;
101    offScreen.current.material.uniforms.res.value = res;
102
103    gl.setRenderTarget(null);
104    composerRef.current.render();
105  });
106
107  useEffect(() => {
108    const zoom = calculateOrthographicZoom(
109      offScreenCameraRef.current,
110      offScreen.current,
111      calculateDistanceToCamera(offScreenCameraRef.current, offScreen.current)
112    );
113
114    setOrthoZoom(zoom);
115
116    const camera = new THREE.PerspectiveCamera(
117      50,
118      window.innerWidth / window.innerHeight,
119      0.1,
120      1000
121    );
122    camera.position.set(0, 0, cameraZ);
123    set({ camera: camera });
124  }, [set]);
125
126  return (
127    <>
128      <Stats />
129      <EffectComposer ref={composerRef} multisampling={8} depthBuffer={true}>
130        <RippleEffect
131          ref={rippleShaderPassRef}
132          bufferTexture={onScreenFBOTexture.texture}
133          res={new THREE.Vector2(size.width, size.height)}
134          mouse={mouseCenter}
135        />
136      </EffectComposer>
137      {createPortal(
138        <>
139          <OffScreenScene
140            ref={offScreen}
141            bufferTexture={offScreenFBOTexture.texture}
142          />
143
144          <OrthographicCamera
145            makeDefault
146            position={[0, 0, 2]}
147            args={[-1, 1, 1, -1, 1, 10]}
148            aspect={size.width / size.height}
149            ref={offScreenCameraRef}
150            zoom={orthoZoom}
151          />
152        </>,
153        offScreenScene
154      )}
155    </>
156  );
157});

What we visually see is in the onScreen EffectComposer:

1<EffectComposer ref={composerRef} multisampling={8} depthBuffer={true}>
2  <RippleEffect
3    ref={rippleShaderPassRef}
4    bufferTexture={onScreenFBOTexture.texture}
5    res={new THREE.Vector2(size.width, size.height)}
6    mouse={mouseCenter}
7  />
8</EffectComposer>

Pretty basic here and dont forget the EffectComposer is from the postprocessing library.

And the propagation of the ripple occurs in this part, the offscreen scene:

1{createPortal(
2  <>
3    <OffScreenScene
4      ref={offScreen}
5      bufferTexture={offScreenFBOTexture.texture}
6    />
7
8    <OrthographicCamera
9      makeDefault
10      position={[0, 0, 2]}
11      args={[-1, 1, 1, -1, 1, 10]}
12      aspect={size.width / size.height}
13      ref={offScreenCameraRef}
14      zoom={orthoZoom}
15    />
16  </>,
17  offScreenScene
18)}

Image createPortal allows you to insert another scene into your current scene, with its own camera and scene. This will allow you to grab the ref in this case (offScreenScene) and then render it in the renderLoop. voilla a offscreen render, independent of the main scene. Perfect for feedbacks and multiple buffer shaders from shaderToy.

Vertex Shader

The vertex shader is just a bog standard one with the matricies and the position attribute.

Fragment Shader

There are two fragment shaders, the onscreen and offscreen one.

onScreen:

This is where we add the color and the ripple like effect:

1uniform vec2 res;
2uniform sampler2D bufferTexture;
3uniform sampler2D colorTexture;
4uniform sampler2D crocTexture;
5uniform vec3 mouse;
6
7// A simple water effect by Tom@2016
8//
9// based on PolyCube version:
10//    http://polycu.be/edit/?h=W2L7zN
11//
12// As people give me too much credit for this one,
13// it's based on: http://freespace.virgin.net/hugo.elias/graphics/x_water.htm
14// A very old Hugo Elias water tutorial :)
15//
16// Note:
17//   I could use one buffer only as in https://www.shadertoy.com/view/4sd3WB
18//   with a clever trick to utilize two channels
19//   and keep buffer A in x/r and buffer B in y/g.
20//   However, now I render every second simulation step,
21//   so the animation is more dynamic.
22//
23// Here is 1-buffer version for comparison:
24//   https://www.shadertoy.com/view/4dK3Ww
25//
26
27const float kernel = 10.0f;
28const float weight = 1.0f;
29
30void mainImage(const in vec4 inputColor, const in vec2 uv, out vec4 outputColor) {
31
32  vec2 center = mouse.xy;
33
34  //creates a shorthand for sin(iTime)
35  float sSin = 2.1f;
36
37  //changes the vUv to zoom in on the screen
38  vec2 q = uv;
39
40  vec3 e = vec3(vec2(1.f) / res.xy, 0.f);
41  float p10 = texture(bufferTexture, q - e.zy).x;
42
43  float p01 = texture(bufferTexture, q - e.xz).x;
44
45  float p21 = texture(bufferTexture, q + e.xz).x;
46
47  float p12 = texture(bufferTexture, q + e.zy).x;
48
49  // Totally fake displacement and shading:
50  vec3 grad = normalize(vec3(p21 - p01, p12 - p10, .1f)) * 1.25f;
51
52  vec4 c = texture(inputBuffer, uv + grad.xy * 0.01f);
53  vec3 light = normalize(vec3(24.0f, 2.5f, 10.0f));
54  float diffuse = 16.0f - dot(grad, light);
55  float spec = pow(max(0.f, reflect(light, grad).z), 10.f);
56
57  vec4 backgroundColor = texture(inputBuffer, uv);
58
59  outputColor = vec4(mix(c.rgb * max(diffuse, 1.f) + spec * uv.x, (vec3(0.0f, 0.0f, 0.0f)), 0.3f) * 0.1, 1.0f);
60}

offScreen:

And this is where the propagation happens:

1export const offScreenFragmentShader = `
2uniform sampler2D bufferTexture;
3uniform vec3 mouse;
4uniform float time;
5uniform vec2 res;
6
7varying vec2 vUv;
8
9// Make this a smaller number for a smaller timestep.
10// Don't make it bigger than 1.4 or the universe will explode.
11const float delta = 1.8f;
12
13void main() {
14  vec3 e = vec3(vec2(1.f) / res.xy / 2.0f, 0.f);
15  vec2 q = vUv;
16
17  vec4 c = texture(bufferTexture, q);
18
19  float p11 = c.y;
20
21  float p10 = texture(bufferTexture, q - e.zy).x;
22  float p01 = texture(bufferTexture, q - e.xz).x;
23  float p21 = texture(bufferTexture, q + e.xz).x;
24  float p12 = texture(bufferTexture, q + e.zy).x;
25
26  float d = 0.f;
27
28  if(mouse.z > 1.f) {
29    // Mouse interaction:
30    d = smoothstep(4.0f, 0.0f, length(mouse.xy * res.xy - vUv.xy * res.xy));
31  }
32
33   // The actual propagation:
34  d += -(p11 - .5f) * 2.f + (p10 + p01 + p21 + p12 - 2.f);
35  d *= .995f; // dampening
36
37  d *= float(time >= 2.0f); // clear the buffer at iFrame < 2
38  d = d * .5f + .5f;
39
40  gl_FragColor = vec4(d, c.x, 0, 0);
41}
42`;

Quick run down, we store the current and previous ripple values in the x/y channels of the output, this way we can propagate the ripple or wave like effect. And as we have a feedback between the inputs and outputs it can happen perpetually. This is where this comes into practice:

1d *= .995f; // dampening

which disipates the ripples over time we only pass 0.05% of the ripple onto the next frame.

Postprocessing Effect

This is the custom effect which is basically a clone of the @react-three/postprocessing library.

1/* eslint-disable react/display-name */
2import React, { forwardRef, useMemo } from "react";
3import { Uniform } from "three";
4import { Effect } from "postprocessing";
5import { onScreenFragmentShader } from "./shaders/onScreenFragmentShader";
6
7let _bufferTexture;
8let _res;
9let _mouse;
10let _colorTexture;
11let _crocTexture;
12
13// Effect implementation
14class MyCustomEffectImpl extends Effect {
15  constructor({
16    bufferTexture = null,
17    res = null,
18    mouse = null,
19    colorTexture = null,
20    crocTexture = null,
21  } = {}) {
22    super("RippleEffect", onScreenFragmentShader, {
23      uniforms: new Map([
24        ["bufferTexture", new Uniform(bufferTexture)],
25        ["res", new Uniform(res)],
26        ["mouse", new Uniform(mouse)],
27        ["colorTexture", new Uniform(colorTexture)],
28        ["crocTexture", new Uniform(crocTexture)],
29      ]),
30      //   blendFunction: BlendFunction.NORMAL
31    });
32
33    _bufferTexture = bufferTexture;
34    _res = res;
35    _mouse = mouse;
36    _colorTexture = colorTexture;
37    _crocTexture = crocTexture;
38  }
39
40  update(renderer, inputBuffer, deltaTime) {
41    this.uniforms.get("bufferTexture").value = _bufferTexture;
42    this.uniforms.get("res").value = _res;
43    this.uniforms.get("mouse").value = _mouse;
44    this.uniforms.get("colorTexture").value = _colorTexture;
45    this.uniforms.get("crocTexture").value = _crocTexture;
46  }
47}
48// Effect component
49const RippleEffect = forwardRef(
50  ({ bufferTexture, res, mouse, colorTexture, crocTexture }, ref) => {
51    const effect = useMemo(() => {
52      return new MyCustomEffectImpl({
53        bufferTexture,
54        res,
55        mouse,
56        colorTexture,
57        crocTexture,
58      });
59    }, [bufferTexture, res, mouse, colorTexture, crocTexture]);
60    return <primitive ref={ref} object={effect} />;
61  }
62);
63
64export { RippleEffect };

Go explore the sandbox and play around with the code abit.

We have a basic setup now for doing complex postprocessing ontop of html like structured threejs objects. And off / on screen renders.
