Crafting a Spatially Expanding Blob in Three.js - Dynamic Geometry and Bounding Box Alignment

This was a little experiment is seeing how an expanding 3D shape would fill a containing or bounding box.

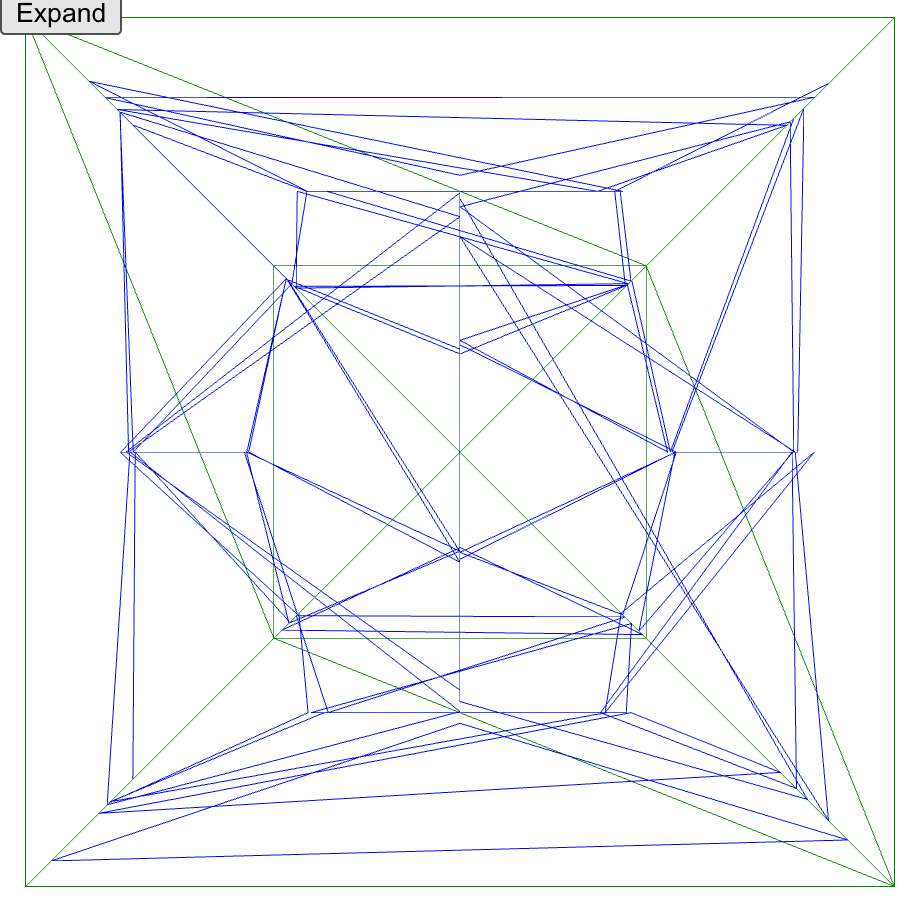

The end result is shown in the GIF below.

The code is here.

1import React, { useRef, useState, useEffect } from 'react';
2import { Canvas } from '@react-three/fiber';
3import * as THREE from 'three';
4import { SimplexNoise } from 'three/examples/jsm/math/SimplexNoise';
5
6function ExpandingDecahedron({ expand }) {
7  const meshRef = useRef();
8  const noise = new SimplexNoise();
9  const boxSize = 4;
10  const baseExpansionRate = 0.05; // Base expansion rate
11
12  const [geometry, setGeometry] = useState(() => new THREE.DodecahedronGeometry(1));
13
14  useEffect(() => {
15    if (expand) {
16      const vertices = geometry.attributes.position.array;
17
18      for (let i = 0; i < vertices.length; i += 3) {
19        // Calculate the direction vector from the center to the vertex
20        const vertex = new THREE.Vector3(vertices[i], vertices[i + 1], vertices[i + 2]);
21        const direction = vertex.clone().normalize(); // Normalize the direction vector
22
23        // Generate a noise-based expansion rate for this vertex
24        const noiseValue = noise.noise(Math.random(), Math.random(), Math.random()) * 1.1;
25        const expansionRate = baseExpansionRate + noiseValue * baseExpansionRate;
26
27        // Expand each vertex outward along the direction vector with added noise
28        vertices[i] += direction.x * expansionRate;
29        vertices[i + 1] += direction.y * expansionRate;
30        vertices[i + 2] += direction.z * expansionRate;
31
32        // Clamp the vertices if they hit the bounding box
33        if (Math.abs(vertices[i]) > boxSize / 2) {
34          vertices[i] = boxSize / 2 * Math.sign(vertices[i]);
35        }
36        if (Math.abs(vertices[i + 1]) > boxSize / 2) {
37          vertices[i + 1] = boxSize / 2 * Math.sign(vertices[i + 1]);
38        }
39        if (Math.abs(vertices[i + 2]) > boxSize / 2) {
40          vertices[i + 2] = boxSize / 2 * Math.sign(vertices[i + 2]);
41        }
42      }
43
44      geometry.attributes.position.needsUpdate = true; // Notify Three.js that the geometry has been updated
45    }
46  }, [expand, geometry, noise]);
47
48  return (
49    <mesh ref={meshRef} geometry={geometry}>
50      <meshBasicMaterial attach="material" color="blue" wireframe />
51    </mesh>
52  );
53}
54
55function App() {
56  const [expand, setExpand] = useState(false);
57
58  const handleExpandClick = () => {
59    setExpand((prev) => !prev);
60  };
61
62  return (
63    <>
64      <Canvas>
65        <ambientLight />
66        <pointLight position={[10, 10, 10]} />
67
68        {/* Bounding Box */}
69        <mesh>
70          <boxGeometry args={[4, 4, 4]} />
71          <meshBasicMaterial color="green" wireframe />
72        </mesh>
73
74        {/* Expanding Decahedron */}
75        <ExpandingDecahedron expand={expand} />
76      </Canvas>
77
78      {/* Button to toggle expansion */}
79      <button onClick={handleExpandClick} style={{ position: 'absolute', top: '20px', left: '20px' }}>
80        {expand ? 'Contract' : 'Expand'}
81      </button>
82    </>
83  );
84}
85
86export default App;

The interesting bit is in the useEffect.

1if (expand) {
2    const vertices = geometry.attributes.position.array;
3
4    for (let i = 0; i < vertices.length; i += 3) {
5    // Calculate the direction vector from the center to the vertex
6    const vertex = new THREE.Vector3(vertices[i], vertices[i + 1], vertices[i + 2]);
7    const direction = vertex.clone().normalize(); // Normalize the direction vector
8
9    // Generate a noise-based expansion rate for this vertex
10    const noiseValue = noise.noise(Math.random(), Math.random(), Math.random()) * 1.1;
11    const expansionRate = baseExpansionRate + noiseValue * baseExpansionRate;
12
13    // Expand each vertex outward along the direction vector with added noise
14    vertices[i] += direction.x * expansionRate;
15    vertices[i + 1] += direction.y * expansionRate;
16    vertices[i + 2] += direction.z * expansionRate;
17
18    // Clamp the vertices if they hit the bounding box
19    if (Math.abs(vertices[i]) > boxSize / 2) {
20        vertices[i] = boxSize / 2 * Math.sign(vertices[i]);
21    }
22    if (Math.abs(vertices[i + 1]) > boxSize / 2) {
23        vertices[i + 1] = boxSize / 2 * Math.sign(vertices[i + 1]);
24    }
25    if (Math.abs(vertices[i + 2]) > boxSize / 2) {
26        vertices[i + 2] = boxSize / 2 * Math.sign(vertices[i + 2]);
27    }
28    }
29
30    geometry.attributes.position.needsUpdate = true; // Notify Three.js that the geometry has been updated
31}

The direction bit is key:

1const vertex = new THREE.Vector3(vertices[i], vertices[i + 1], vertices[i + 2]);
2const direction = vertex.clone().normalize(); // Normalize the direction vector

We can do the direction like this as we are doing it from the origin which is at the center of the expanding blob.

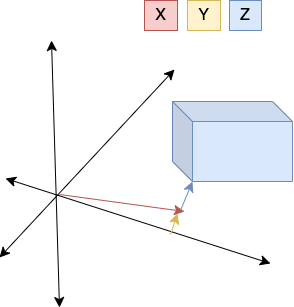

Consider the following:

The vector is a map to the origin of the scene. So when we have a direction we are saying from the origin how do we get to this vector?

And then to make it a direction we eliminate the magnitude of the vector by normalizing the vector.
