Visualizing a 3D Sphere with Convex Hull and Wireframe Using R3F.

Out of interest I wanted the precusor to a 3D hull, a convex one. I heavily used chatgpt for the implementation, but came up with the ideas and creativity myself.

So the easiest way to do this is to get each length to the centre of the points.

Once we have all these lengths, we get the top 10th for example. So we get the ones which are furtherest away from the centre.

So we avoid the need for complex algorithms. And can use lengths to describe the outer points.

Once we have the points it was simple enough to construct a wireframe.

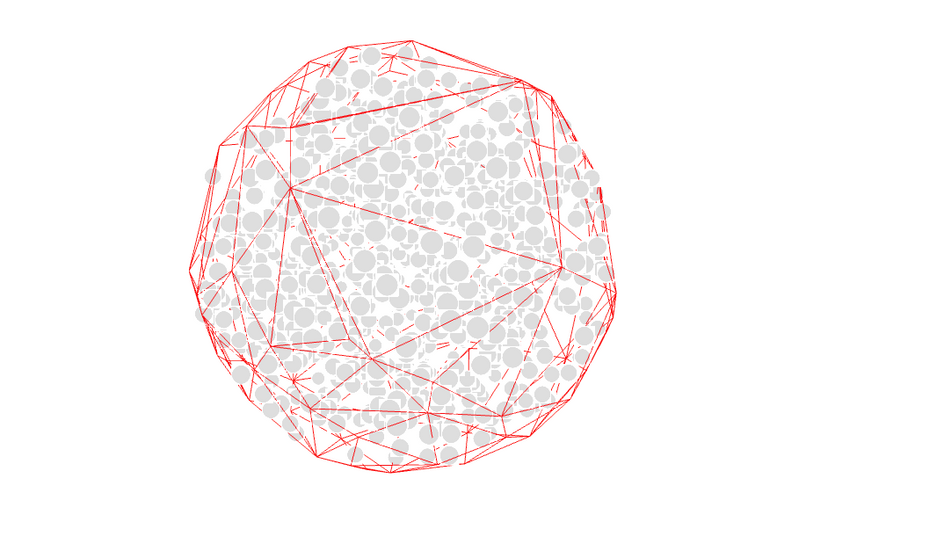

Below is the code for this little experiment.

1import React, { useMemo } from 'react';
2import { Points, PointMaterial, OrbitControls } from '@react-three/drei';
3import * as THREE from 'three';
4
5import { ConvexGeometry } from 'three/examples/jsm/geometries/ConvexGeometry.js'; // Import ConvexGeometry helper
6
7function createRedPointsGeometry(redPoints) {
8  const vectors = [];
9  for (let i = 0; i < redPoints.length; i += 3) {
10    vectors.push(new THREE.Vector3(redPoints[i], redPoints[i + 1], redPoints[i + 2]));
11  }
12
13  // Create a Convex Geometry from the outer points
14  const convexGeometry = new ConvexGeometry(vectors);
15
16  return convexGeometry;
17}
18
19function getRandomPointInSphere(radius) {
20    const u = Math.random();
21    const v = Math.random();
22    const theta = 2 * Math.PI * u;
23    const phi = Math.acos(2 * v - 1);
24    const r = radius * Math.cbrt(Math.random());
25
26    const x = r * Math.sin(phi) * Math.cos(theta);
27    const y = r * Math.sin(phi) * Math.sin(theta);
28    const z = r * Math.cos(phi);
29
30    return [x, y, z];
31  }
32
33function RandomPoints({ radius = 5, count = 1000 }) {
34  const { innerPoints, outerPoints } = useMemo(() => {
35    const points = [];
36    for (let i = 0; i < count; i++) {
37      const point = getRandomPointInSphere(radius);
38      const distance = Math.sqrt(point[0] ** 2 + point[1] ** 2 + point[2] ** 2);
39      points.push({ point, distance });
40    }
41
42    points.sort((a, b) => b.distance - a.distance);
43    const top10PercentIndex = Math.floor(count * 0.1);
44    const outerPoints = points.slice(0, top10PercentIndex).map(p => p.point);
45    const innerPoints = points.slice(top10PercentIndex).map(p => p.point);
46
47    return {
48      innerPoints: new Float32Array(innerPoints.flat()),
49      outerPoints: new Float32Array(outerPoints.flat())
50    };
51  }, [radius, count]);
52
53  // Create Convex Geometry and Wireframe Geometry for the outer points
54  const convexGeometry = useMemo(() => createRedPointsGeometry(outerPoints), [outerPoints]);
55  const wireframeGeometry = useMemo(() => new THREE.WireframeGeometry(convexGeometry), [convexGeometry]);
56
57  return (
58    <>
59      {/* Inner Points */}
60      <Points positions={innerPoints}>
61        <PointMaterial color="white" size={0.5} sizeAttenuation={true} />
62      </Points>
63
64    {/* Outer Points as Convex Hull Wireframe */}
65    <lineSegments geometry={wireframeGeometry}>
66        <lineBasicMaterial color="red" />
67      </lineSegments>
68    </>
69  );
70}
71
72export default function App() {
73  return (
74    <>
75      <ambientLight />
76      <RandomPoints />
77      <OrbitControls />
78    </>
79  );
80}

We could use buffergeometries .setFromPoints and use the outer points to construct a geometry.

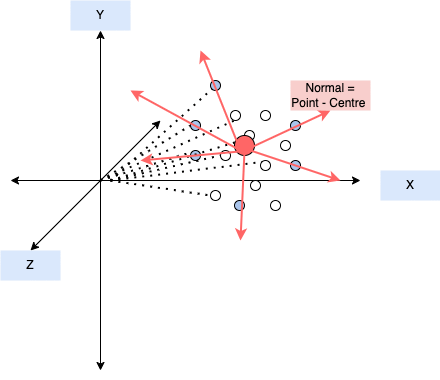

For uvs you could use something like gl-mesh3d and for normals consider the following:

describing how to construct normals from a blob of points

So we get the central point in the points blob and for each outer vertex we do:

1normalise(outerVertex - centre) = normal
