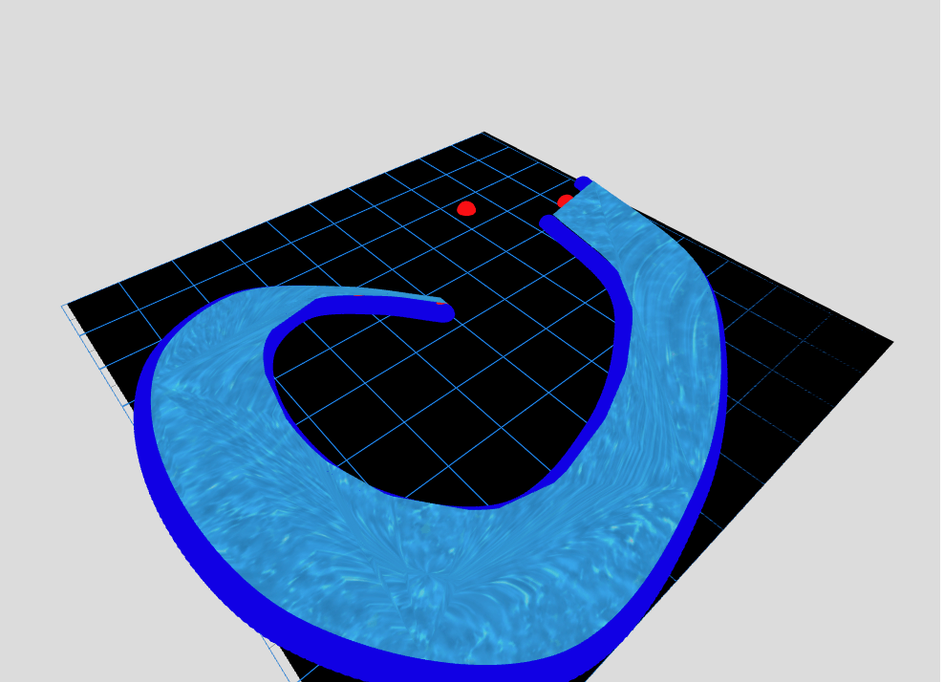

Dynamic FlowMap Curve Modifier for Procedural River Generation

This project was research into how to create a simple curve modifier for a river with a dynamic flow map.

This is R&D and is NOT a complete task.

The UVs are not perfect and could be a take away for you to fix or play with.

The premise is that we add points to state and create a spline from these points.

Take below as a starting point.

1setPoints(old => [...old, point])
2
3if (points.length > 2) {
4    const spline = new THREE.CatmullRomCurve3(points);
5    const curvedPoints = spline.getPoints(300);
6
7    const splineEdgeA = new THREE.CatmullRomCurve3(points.map(pt => {
8        const modPt = pt.clone().multiplyScalar(0.8);
9
10        return modPt;
11    }));
12
13    const edgeAPoints = splineEdgeA.getPoints(300);
14
15    setEdgeAPoints(edgeAPoints);
16
17    const splineEdgeB = new THREE.CatmullRomCurve3(points.map(pt => {
18        const modPt = pt.clone().multiplyScalar(1.2);
19
20        return modPt;
21    }));
22
23    const edgeBPoints = splineEdgeB.getPoints(300);
24
25    setEdgeBPoints(edgeBPoints);

What we do is get the initial spline and then go left or right perpendicular to the original point.

For example this:

1const splineEdgeA = new THREE.CatmullRomCurve3(points.map(pt => {
2    const modPt = pt.clone().multiplyScalar(0.8);
3
4    return modPt;
5}));

And this:

1const splineEdgeB = new THREE.CatmullRomCurve3(points.map(pt => {
2    const modPt = pt.clone().multiplyScalar(1.2);
3
4    return modPt;
5}));

now we use a concave algorithm to use the 2 perimeter points of the original spline.

1const modPoints = [...edgeAPoints, ...edgeBPoints].map((vec3) => new THREE.Vector2(vec3.x, vec3.z));
2
3const ptsConcave = modPoints.map((item) => ([item.x, item.y]))
4
5console.log({ptsConcave})
6
7const hullEdges = new hull(ptsConcave, 1);
8
9console.log()
10
11const shape = new THREE.Shape().setFromPoints(hullEdges.map((item) => new THREE.Vector2(item[0], item[1])));
12
13const shapeGeometry = new THREE.ShapeGeometry(shape);
14
15
16let geometry = new THREE.BufferGeometry().setFromPoints( curvedPoints );
17let material = new THREE.LineBasicMaterial({ color: 0xffdd00 });

So how do we do uvs?

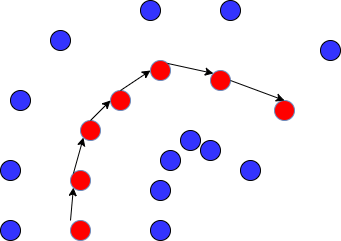

consider this:

How to get the direction into the shader

here is the code:

1const dirs = [];
2
3for (let i = 0; i < hullEdges.length; i += 1) {
4    const point = new THREE.Vector3(hullEdges[i][0], 0, hullEdges[i][1]);
5
6    var { closestPoint, closestNum } = findClosestPointOnSpline(spline, point);
7    const directionAlongSplineA = spline.getPointAt(closestNum)
8    const directionAlongSplineB = spline.getPointAt(Math.min(closestNum + 0.001, 1.0))
9
10    const dir = directionAlongSplineB.sub(directionAlongSplineA);
11    dirs.push(dir.normalize());
12    // console.log("Closest point on spline:", closestPoint);
13}
14
15let pointAAttribute = new THREE.Float32BufferAttribute(
16    new Float32Array(dirs.map((item) => [item.x, item.y, item.z]).flat()),
17    3
18);
19
20setUV(shapeGeometry);
21
22shapeGeometry.setAttribute('direction', pointAAttribute);

Essentially calculating the directions and then setting it in an attribute.

As we are creating a new shape we need to re calculate the UVs as shown below:

1const setUV = (geometry) => {
2// Assuming you have a BufferGeometry named 'geometry'
3
4// Calculate bounding box
5const boundingBox = new THREE.Box3().setFromBufferAttribute(geometry.getAttribute('position'));
6
7// Get dimensions of the bounding box
8const size = boundingBox.getSize(new THREE.Vector3());
9
10// Get the minimum corner of the bounding box
11const min = boundingBox.min;
12
13// Calculate UVs based on normalized vertex positions
14const uvs = [];
15
16for (let i = 0; i < geometry.attributes.position.array.length; i += 3) {
17    const val = new THREE.Vector3(
18    geometry.attributes.position.array[i],
19    geometry.attributes.position.array[i + 1],
20    geometry.attributes.position.array[i + 2]
21    );
22    uvs.push((val.x - min.x) / size.x); // Map x coordinates to range [0, 1]
23    uvs.push((val.y - min.y) / size.y); // Map y coordinates to range [0, 1]
24}
25
26// Set UVs as an attribute of the BufferGeometry
27geometry.setAttribute('uv', new THREE.BufferAttribute(new Float32Array(uvs), 2));
28
29}

The uvs are calculated by removing the min of the bounding box and then dividing by the total size to get the coordinates into the range 0-1, which is the uv range.

This then becomes where we put the concave hull mesh which generates the surface for the flow map.

1<mesh geometry={shapeGeometry} rotation={[Math.PI/2, 0, 0]} position-y={0.2}>
2    <shaderMaterial
3        ref={riverRef}
4        attach="material"
5        args={[
6        {
7            uniforms,
8            vertexShader,
9            fragmentShader
10        }
11        ]}
12        side={THREE.DoubleSide}
13    />
14</mesh>

The flow map shaders are as below and you can get a general idea from this article.

1const vertexShader = `
2  attribute vec3 direction;
3  varying vec2 vUv;
4  varying vec3 vDirection;
5
6
7  void main () {
8    vUv = uv;
9    vDirection = direction;
10    gl_Position = projectionMatrix * modelViewMatrix * vec4(position, 1.0);
11  }
12`;
13
14const fragmentShader = `
15  // https://codesandbox.io/p/sandbox/dazzling-sid-mwb1zw?file=%2Fsrc%2Friver.js%3A73%2C26&from-embed=
16
17  uniform sampler2D flowTexture;
18  uniform sampler2D riverTexture;
19  varying vec2 vUv;
20  uniform float flowSpeed;
21  uniform float cycleTime;
22  uniform float time;
23
24  varying vec3 vDirection;
25
26  void main () {
27    vec2 flowDirection = normalize(vDirection.xz);
28
29    // Use two cycles, offset by a half so we can blend between them
30    float t1 = time / cycleTime;
31    float t2 = t1 + 0.5;
32    float cycleTime1 = t1 - floor(t1);
33    float cycleTime2 = t2 - floor(t2);
34    vec2 flowDirection1 = flowDirection * cycleTime1 * flowSpeed;
35    vec2 flowDirection2 = flowDirection * cycleTime2 * flowSpeed;
36    vec2 uv1 = vUv + flowDirection1;
37    vec2 uv2 = vUv + flowDirection2;
38    vec4 color1 = texture2D( riverTexture, uv1 );
39    vec4 color2 = texture2D( riverTexture, uv2 );
40
41    // FLOW MAP
42    gl_FragColor = mix( color1, color2, abs(cycleTime1 - 0.5) * 2.0 );
43  }
44`;

vDirection is passed from the vertex shader to the fragment shader and goes through interpolation.

We then use this direction in the fragment shader where the flow map is constructed. This is not quite right and needs tweaking abit but you get the general idea.

Heres the full example:

1// https://codepen.io/boytchev/pen/YzOjyRN
2
3import * as THREE from "three";
4import React, { useRef, useState, useEffect } from "react";
5import { Canvas, useFrame, useThree, useLoader } from "@react-three/fiber";
6import { Grid, OrbitControls, Points } from '@react-three/drei';
7import hull from "hull.js";
8
9import waterImg from './water.jpg';
10
11const vertexShader = `
12  attribute vec3 direction;
13  varying vec2 vUv;
14  varying vec3 vDirection;
15
16
17  void main () {
18    vUv = uv;
19    vDirection = direction;
20    gl_Position = projectionMatrix * modelViewMatrix * vec4(position, 1.0);
21  }
22`;
23const fragmentShader = `
24  // https://codesandbox.io/p/sandbox/dazzling-sid-mwb1zw?file=%2Fsrc%2Friver.js%3A73%2C26&from-embed=
25
26  uniform sampler2D flowTexture;
27  uniform sampler2D riverTexture;
28  varying vec2 vUv;
29  uniform float flowSpeed;
30  uniform float cycleTime;
31  uniform float time;
32
33  varying vec3 vDirection;
34  varying vec3 pntA;
35  varying vec3 pntB;
36
37  void main () {
38    vec2 flowDirection = normalize(vDirection.xz);
39
40    // Use two cycles, offset by a half so we can blend between them
41    float t1 = time / cycleTime;
42    float t2 = t1 + 0.5;
43    float cycleTime1 = t1 - floor(t1);
44    float cycleTime2 = t2 - floor(t2);
45    vec2 flowDirection1 = flowDirection * cycleTime1 * flowSpeed;
46    vec2 flowDirection2 = flowDirection * cycleTime2 * flowSpeed;
47    vec2 uv1 = vUv + flowDirection1;
48    vec2 uv2 = vUv + flowDirection2;
49    vec4 color1 = texture2D( riverTexture, uv1 );
50    vec4 color2 = texture2D( riverTexture, uv2 );
51
52    // FLOW MAP
53    gl_FragColor = mix( color1, color2, abs(cycleTime1 - 0.5) * 2.0 );
54  }
55`;
56
57function Spline() {
58  const curve = useRef(new THREE.SplineCurve());
59  const riverRef = useRef();
60  const { camera, scene, gl } = useThree();
61
62  const [points, setPoints] = useState([]);
63  const [edgeAPoints, setEdgeAPoints] = useState([])
64  const [edgeBPoints, setEdgeBPoints] = useState([])
65
66  const [shapeGeometry, setShapeGeometry] = useState(new THREE.ShapeGeometry());
67
68  const [curveObject, setCurveObject] = useState([]);
69  const [objects, setObjects] = useState([]);
70
71  const setUV = (geometry) => {
72   // Assuming you have a BufferGeometry named 'geometry'
73
74    // Calculate bounding box
75    const boundingBox = new THREE.Box3().setFromBufferAttribute(geometry.getAttribute('position'));
76
77    // Get dimensions of the bounding box
78    const size = boundingBox.getSize(new THREE.Vector3());
79
80    // Get the minimum corner of the bounding box
81    const min = boundingBox.min;
82
83    // Calculate UVs based on normalized vertex positions
84    const uvs = [];
85
86    for (let i = 0; i < geometry.attributes.position.array.length; i += 3) {
87      const val = new THREE.Vector3(
88        geometry.attributes.position.array[i],
89        geometry.attributes.position.array[i + 1],
90        geometry.attributes.position.array[i + 2]
91      );
92      uvs.push((val.x - min.x) / size.x); // Map x coordinates to range [0, 1]
93      uvs.push((val.y - min.y) / size.y); // Map y coordinates to range [0, 1]
94    }
95
96    // Set UVs as an attribute of the BufferGeometry
97    geometry.setAttribute('uv', new THREE.BufferAttribute(new Float32Array(uvs), 2));
98
99  }
100
101  // Function to find the closest point on the spline to a given vec3
102  function findClosestPointOnSpline(spline, point) {
103    let closestPoint = null;
104    let closestNum = 0;
105    let closestDistanceSq = Number.POSITIVE_INFINITY;
106
107    // Sample points along the curve
108    let divisions = 1000; // Adjust this according to the required precision
109    let points = spline.getPoints(divisions);
110
111    // Iterate through sampled points
112    for (let i = 0; i < points.length; i++) {
113
114        let currentPoint = points[i];
115        let distanceSq = currentPoint.distanceToSquared(point);
116
117        // Check if this point is closer than the previous closest point
118      if (distanceSq < closestDistanceSq) {
119        closestNum = i;
120        closestDistanceSq = distanceSq;
121        closestPoint = currentPoint.clone();
122      }
123    }
124
125    return { closestPoint, closestNum: closestNum / 1000 };
126  }
127
128  const onClick = ({point}) => {
129    setPoints(old => [...old, point])
130
131    if (points.length > 2) {
132      const spline = new THREE.CatmullRomCurve3(points);
133      const curvedPoints = spline.getPoints(300);
134
135      const splineEdgeA = new THREE.CatmullRomCurve3(points.map(pt => {
136        const modPt = pt.clone().multiplyScalar(0.8);
137
138        return modPt;
139      }));
140
141      const edgeAPoints = splineEdgeA.getPoints(300);
142
143      setEdgeAPoints(edgeAPoints);
144
145      const splineEdgeB = new THREE.CatmullRomCurve3(points.map(pt => {
146        const modPt = pt.clone().multiplyScalar(1.2);
147
148        return modPt;
149      }));
150
151      const edgeBPoints = splineEdgeB.getPoints(300);
152
153      setEdgeBPoints(edgeBPoints);
154
155      const modPoints = [...edgeAPoints, ...edgeBPoints].map((vec3) => new THREE.Vector2(vec3.x, vec3.z));
156
157      const ptsConcave = modPoints.map((item) => ([item.x, item.y]))
158
159      console.log({ptsConcave})
160
161      const hullEdges = new hull(ptsConcave, 1);
162
163      console.log()
164
165      const shape = new THREE.Shape().setFromPoints(hullEdges.map((item) => new THREE.Vector2(item[0], item[1])));
166
167      const shapeGeometry = new THREE.ShapeGeometry(shape);
168
169
170      let geometry = new THREE.BufferGeometry().setFromPoints( curvedPoints );
171      let material = new THREE.LineBasicMaterial({ color: 0xffdd00 });
172
173      const dirs = [];
174
175      for (let i = 0; i < hullEdges.length; i += 1) {
176        const point = new THREE.Vector3(hullEdges[i][0], 0, hullEdges[i][1]);
177
178        var { closestPoint, closestNum } = findClosestPointOnSpline(spline, point);
179        const directionAlongSplineA = spline.getPointAt(closestNum)
180        const directionAlongSplineB = spline.getPointAt(Math.min(closestNum + 0.001, 1.0))
181
182        const dir = directionAlongSplineB.sub(directionAlongSplineA);
183        dirs.push(dir.normalize());
184        // console.log("Closest point on spline:", closestPoint);
185      }
186
187      let pointAAttribute = new THREE.Float32BufferAttribute(
188        new Float32Array(dirs.map((item) => [item.x, item.y, item.z]).flat()),
189        3
190      );
191
192      setUV(shapeGeometry);
193
194      shapeGeometry.setAttribute('direction', pointAAttribute);
195
196      shapeGeometry.attributes.direction.needsUpdate = true;
197      setShapeGeometry(shapeGeometry);
198
199      setObjects([geometry, material])
200    }
201  }
202
203  useEffect(() => {
204    if (shapeGeometry.attributes.pointA) {
205      shapeGeometry.attributes.pointA.needsUpdate = true;
206    }
207
208    if (shapeGeometry.attributes.pointB) {
209      shapeGeometry.attributes.pointB.needsUpdate = true;
210    }
211
212    if (shapeGeometry.attributes.uv) {
213      shapeGeometry.attributes.uv.needsUpdate = true;
214    }
215
216  }, [shapeGeometry])
217
218  const [riverTexture] = useLoader(THREE.TextureLoader, [waterImg]);
219
220  useFrame(({ clock }) => {
221    if (riverRef.current) {
222      riverTexture.wrapS = riverTexture.wrapT = THREE.RepeatWrapping;
223      riverRef.current.uniforms.riverTexture.value = riverTexture;
224      riverRef.current.uniforms.flowSpeed.value = 0.5;
225      riverRef.current.uniforms.cycleTime.value = 20.0;
226      riverRef.current.uniforms.time.value = clock.getElapsedTime();
227    }
228  });
229
230  const uniforms = {
231    flowTexture: { value: null },
232    riverTexture: { value: null },
233    flowSpeed: { value: null },
234    cycleTime: { value: null },
235    time: { value: 0 }
236  };
237
238
239  return (
240    <>
241      {points.map((point) => {
242        return (
243          <mesh position={[point.x, point.y, point.z + 0.1]}>
244            <sphereGeometry args={[0.2, 20, 20]} />
245            <meshBasicMaterial color={'red'} side={THREE.DoubleSide}/>
246          </mesh>
247        )
248      })}
249
250      {edgeAPoints.map((point) => {
251        return (
252          <mesh position={[point.x, point.y, point.z + 0.1]}>
253            <sphereGeometry args={[0.2, 20, 20]} />
254            <meshBasicMaterial color={'blue'} side={THREE.DoubleSide}/>
255          </mesh>
256        )
257      })}
258
259      {edgeBPoints.map((point) => {
260        return (
261          <mesh position={[point.x, point.y, point.z + 0.1]}>
262            <sphereGeometry args={[0.2, 20, 20]} />
263            <meshBasicMaterial color={'blue'} side={THREE.DoubleSide}/>
264          </mesh>
265        )
266      })}
267
268      <mesh onClick={onClick} position-z={-0.1} rotation={[Math.PI/2, 0, 0]}>
269        <planeGeometry args={[10,10]} />
270        <meshStandardMaterial args={['blue']} side={THREE.DoubleSide} />
271      </mesh>
272
273      <line geometry={objects[0]} material={objects[1]} />
274
275      <mesh geometry={shapeGeometry} rotation={[Math.PI/2, 0, 0]} position-y={0.2}>
276        <shaderMaterial
277          ref={riverRef}
278          attach="material"
279          args={[
280            {
281              uniforms,
282              vertexShader,
283              fragmentShader
284            }
285          ]}
286          side={THREE.DoubleSide}
287        />
288      </mesh>
289    </>
290  );
291}
292
293export default function FlowMap() {
294  return (
295    <Canvas
296      camera={{
297        position: [0, 0, 1],
298        near: 0.01,
299        far: 100
300      }}
301      onCreated={({ gl }) => {
302        gl.setClearColor(new THREE.Color("gainsboro"));
303      }}
304    >
305      <Spline />
306      <OrbitControls />
307      <Grid args={[10, 10]}/>
308    </Canvas>
309  );
310}

Dynamic FlowMap Curve Modifier for Procedural River Generation

More articles from theFrontDev

Centroids - Precursor to Normal Calculation in Point Clouds

Crafting a Spatially Expanding Blob in Three.js - Dynamic Geometry and Bounding Box Alignment
