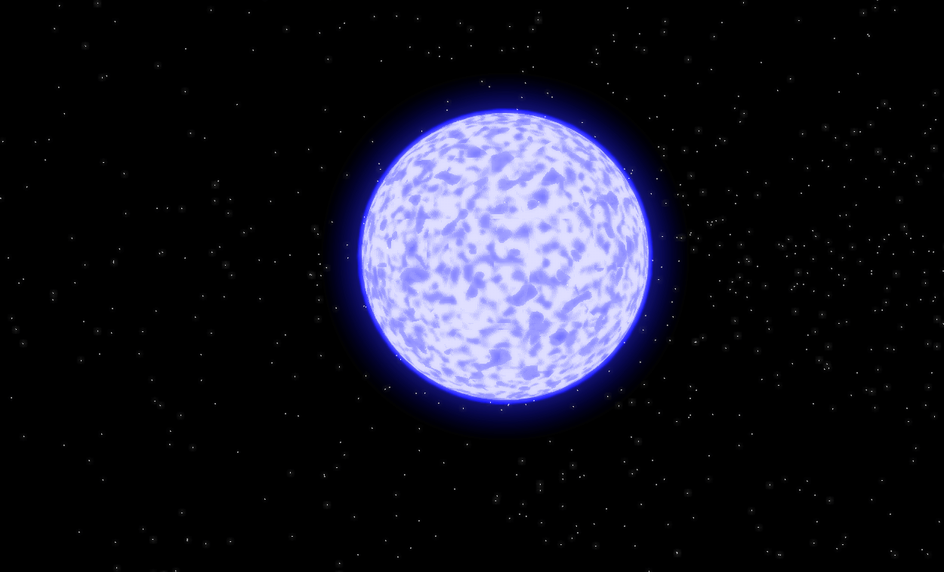

Harnessing the Elements - Sun, Noise, and Bloom in Layered Mesh Design

Copy
1import { ImprovedNoise } from 'three/examples/jsm/math/ImprovedNoise';
2import React, { useState, useEffect, useMemo } from 'react';
3import { Canvas, useFrame } from '@react-three/fiber';
4import { OrbitControls } from '@react-three/drei';
5import * as THREE from 'three';
6import { EffectComposer, Bloom } from '@react-three/postprocessing';
7import { KernelSize } from 'postprocessing'
8
9const generate3DNoiseTexture = (width, height, depth) => {
10    const size = width * height * depth;
11    const data = new Float32Array(size);
12    const noise = new ImprovedNoise();
13    const scale = 10;
14
15    for (let z = 0; z < depth; z++) {
16        for (let y = 0; y < height; y++) {
17            for (let x = 0; x < width; x++) {
18                const nx = x / width;
19                const ny = y / height;
20                const nz = z / depth;
21                data[x + width * (y + height * z)] = (noise.noise(nx * scale, ny * scale, nz * scale) + 1) * 0.5;
22            }
23        }
24    }
25
26    const texture = new THREE.Data3DTexture(data, width, height, depth);
27    texture.minFilter = THREE.NearestMipMapLinearFilter;
28    texture.magFilter = THREE.NearestMipMapLinearFilter;
29    texture.format = THREE.RedFormat;
30    texture.type = THREE.FloatType;
31    texture.needsUpdate = true;
32    texture.wrapR = texture.wrapS = texture.wrapT = THREE.RepeatWrapping;
33
34    return texture;
35};
36
37const NoiseMaterial = ({ noiseTexture, front, alpha }) => {
38    const [time, setTime] = useState(0);
39    useFrame(({ clock }) => setTime(clock.getElapsedTime()));
40
41    const vertexShader = `
42        varying vec3 vPosition;
43        void main() {
44            vPosition = position;
45            vec4 mvPosition = modelViewMatrix * vec4(position, 1.0);
46            gl_Position = projectionMatrix * mvPosition;
47        }
48    `;
49
50    const fragmentShader = `
51        varying vec3 vPosition;
52        uniform sampler3D noiseTexture;
53        uniform float alpha;
54        uniform float time;
55
56        void main() {
57            vec3 vPos = vPosition;
58            vPos.xyz += time * 0.3;
59            vPos.xyz = (vPos.xyz + time * 0.3 + 1.0) * (0.5 + time * 0.8);
60            vPos = vec3(vPos);
61            vec3 noise = texture(noiseTexture, vPos ).rgb;
62            float stepper = step(alpha / 0.3, noise.r);
63            gl_FragColor = vec4(0.0, 0.0, mix(stepper * 6.0 * 2.0 - alpha, 0.0, alpha), mix(0.0, stepper, noise.r / 0.7));
64        }
65    `;
66
67    return (
68        <shaderMaterial
69            attach="material"
70            transparent={true}
71            alphaToCoverage
72            sizeAttenuation={false}
73            depthTest={true}
74            depthWrite={true}
75            side={front ? THREE.FrontSide : THREE.BackSide}
76            args={[{
77                vertexShader,
78                fragmentShader,
79                uniforms: {
80                    noiseTexture: { value: noiseTexture },
81                    alpha: { value: alpha },
82                    time: { value: time }
83                } }]}
84            uniforms-noiseTexture-value={noiseTexture}
85            uniforms-alpha-value={alpha / 10 - 0.1}
86            uniforms-time-value={time * 1.0 / alpha / 50.0}
87        />
88    );
89};
90
91const LayeredSpheres = ({ radius, noiseTexture, layers }) => {
92    const layerOffset = 0.01;
93
94    return (
95        <>
96            {[...Array(layers)].map((_, i) => {
97                const currentRadius = radius - i / layers * layerOffset;
98                if (currentRadius <= 0) return null; // Prevent spheres with non-positive radius
99
100                return (
101                    <React.Fragment key={i}>
102                        <mesh>
103                            <sphereGeometry args={[currentRadius, 64, 64]} />
104                            <NoiseMaterial noiseTexture={noiseTexture} front={false} alpha={i} /> {/* Outer Sphere */}
105                        </mesh>
106                        <mesh>
107                            <sphereGeometry args={[currentRadius - layerOffset / 2, 64, 64]} />
108                            <NoiseMaterial noiseTexture={noiseTexture} front={true} alpha={i} /> {/* Inner Sphere */}
109                        </mesh>
110                    </React.Fragment>
111                );
112            })}
113        </>
114    );
115};
116
117const LightingAndControls = () => (
118    <>
119        <ambientLight />
120        <pointLight position={[10, 10, 10]} />
121        <OrbitControls />
122    </>
123);
124
125const BloomEffect = () => (
126  <EffectComposer multisampling={8}>
127    <Bloom kernelSize={1} luminanceThreshold={0} luminanceSmoothing={0.9} intensity={0.6} />
128    <Bloom kernelSize={KernelSize.HUGE} luminanceThreshold={0} luminanceSmoothing={0} intensity={.05} />
129  </EffectComposer>
130);
131
132const StarField = ({ count = 5000, radius = 100 }) => {
133    const starsGeometry = useMemo(() => {
134        const positions = new Float32Array(count * 3);
135        for (let i = 0; i < count; i++) {
136            const theta = THREE.MathUtils.randFloatSpread(360);
137            const phi = THREE.MathUtils.randFloatSpread(360);
138
139            const distance = THREE.MathUtils.randFloatSpread(radius);
140
141            const x = distance * Math.cos(theta) * Math.sin(phi);
142            const y = distance * Math.sin(theta) * Math.sin(phi);
143            const z = distance * Math.cos(phi);
144
145            positions.set([x, y, z], i * 3);
146        }
147
148        const geometry = new THREE.BufferGeometry();
149        geometry.setAttribute('position', new THREE.BufferAttribute(positions, 3));
150
151        return geometry;
152    }, [count, radius]);
153
154    return (
155        <points geometry={starsGeometry}>
156            <pointsMaterial size={0.001} color="white" />
157        </points>
158    );
159};
160
161const AppCanvas = ({ children }) => (
162    <Canvas style={{ height: '100vh', width: '100vw' }}>
163        <color attach="background" args={['black']} />
164        {children}
165    </Canvas>
166);
167
168const App = () => {
169    const [noiseTexture, setNoiseTexture] = useState(null);
170
171    useEffect(() => {
172        setNoiseTexture(generate3DNoiseTexture(256, 256, 256));
173    }, []);
174
175    if (!noiseTexture) return null;
176
177    return (
178        <AppCanvas>
179            <LayeredSpheres radius={1} noiseTexture={noiseTexture} layers={60} />
180            <LightingAndControls />
181            <BloomEffect />
182            <StarField />
183            <mesh>
184                <sphereGeometry args={[0.99, 64, 64]} />
185                <meshBasicMaterial color={'#FAF9F6'} emissionIntensity={1.0}/>
186            </mesh>
187        </AppCanvas>
188    );
189};
190
191export default App;
